Popular Design for Reliable Sprinkler - Spray Fire Nozzle – Minshan Detail:
Working principle:

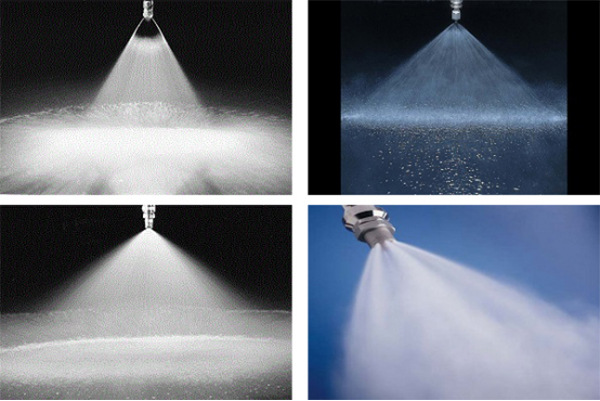

The fire water spray nozzle is an important component in the automatic water spray fire extinguishing system. It forms an automatic spray fire extinguishing system with the water supply pipe network, control valve, fire detection and alarm device, etc. Because the water droplets sprayed do not exceed 1mm, they become mist droplets spread , Improves the efficiency of fire extinguishing, and the mist water droplets will not cause the splash of liquid fire and the conduction of live fire.
Specification:
| MODEL | Nominal Diameter | Thread | Flow Rate | K Factor | Style |
| MS-SPN | DN15 | R1/2 | 80±4 | 5.6 | fire sprinkler |
| DN20 | R3/4 | 115±6 | 8.0 | ||
| DN25 | R1 | 242 | 16.8 |
How to use:
1. Fire water spray nozzle, the main medium is water, in order to protect the performance of the nozzle, the inlet of the nozzle can be equipped with a filter, please indicate it when ordering.
2. If the fire spray nozzle is used to extinguish liquid fires, water foam can be added to the water to improve the fire extinguishing effect.
3. After the installation of the fire water spray nozzle, it should be inspected at least once every quarter, and the dirt on the filter cover should be removed and washed.
Application :
Suitable for fighting fires caused by electrical equipment, flammable liquids, etc., protecting factories, shopping malls, warehouses, generator sets, power distribution rooms, transformers, liquefied gas tanks, petroleum storage tanks, etc. to achieve the purposes of protection, cooling, fire control, and fire extinguishing .
Production line:
The company has integrated a whole set of production line together, strictly comply with each part of the process requirements, control each step of the procedure, to improve the overall work efficiency.
Certificate:
Our company have passed the CE certification, the Certification (CCC Certificate) by CCCF, the ISO9001 and many specified standards requirements from the international market.Existing quality products are applying for UL,FM and LPCB certifications.
Exhibition:
Our company regularly participates in domestic and international large-scale fire exhibitions.
– China International Fire Protection Equipment Technology Conference & Exposition in Beijing.
– Canton Fair in Guangzhou.
– Interschutz in Hannover
– Securika in Moscow.
– Dubai Intersec.
– Saudi Arabia Intersec.
– Secutech vietnam in HCM.
– Secutech India in Bombay.

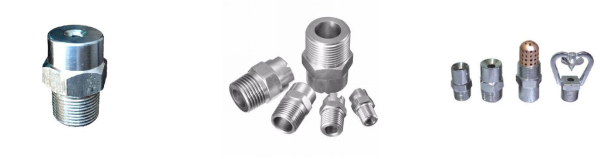

Product detail pictures:
